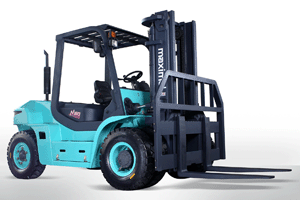

美科斯內燃平衡重叉車

1	Model				FD50T-MWA2	FD60T-MWA2	FD70T-MWA2	1
2	Power Type				Diesel	Diesel	Diesel	2
3	Rated Capacity			kg	5000	6000	7000	3
4	Load Centre			mm	600	600	600	4
5	Lift height			mm	3000	3000	3000	5
6	Free Lift Height			mm	195	200	205	6
7	Fork size		L×W×T	mm	1200×150×55	1200×150×60	1200×150×65	7
8	Mast tilt angle		F/R	Deg	6°/12°	6°/12°	6°/12°	8
9	Fork overhang (Wheel center to fork face)			mm	590	590	590	9
10	Rear Overhang			mm	600	675	740	10
11	Ground clearance（Bottom of mast）			mm	200	200	200	11
12	Overall demensions		Length to face of fork(Without fork)	mm	3440	3515	3580	12
13			Overall width	mm	1995	1995	1995	13
14			Mast lowered height	mm	2500	2500	2625	14
15			Mast extended height(With backrest)	mm	4420	4420	4420	15
16			Overhead guard height	mm	2450	2450	2450	16
17	Turning radius (outside)			mm	3250	3300	3370	17
18	Min.right angle stacking aisle width(add load length and clearance)			mm	2960	3000	3040	18
19	Speed		Travel (NO load)	km/h	30	30	30	19
20			Lifting(Full load)	mm/sec	500	500	460	20
21			Lowering(Full load)	mm/sec	500	500	500	21
22	Max.Drawbar pull (Full load)			KN	54	54	53	22
23	Max.Gradeability (Full load)			%	35	32	30	23
24	Types		Front	mm	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	24
25	Types		Rear	mm	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	25
26	Tread		Front	mm	1470	1470	1470	26
27	Tread		Rear	mm	1700	1700	1700	27
28	Wheelbase			mm	2250	2250	2250	28
29	Self weight			kg	7980	8640	9350	29
30	Weight Distribution	Full Load	Front	kg	11660	13050	14570	30
31		Full Load	Rear	kg	1320	1590	1780	31
32		No Load	Front	kg	4010	3880	3860	32
33		No Load	Rear	kg	3970	4760	5490	33
34	Battey	Voltage/Capacity		V/Ah	24/80	24/80	24/80	34
35	Engine	Model			A-6BG1QC			35
36		Manufacture			ISUZU			36
37		Rated output/r.p.m.		kw	82/2000			37
38		Rated torque/r.p.m.		N·m	416/1400－1600			38
39		No.of cylinder			6			39
40		Bore×Stroke		mm	105×125			40
41		Displacement		L	6.494			41
42		Fuel tank capacity		L	140			42
43	Transmission	Manufacture			CHINA	CHINA	CHINA	43
44		Type			Powershift	Powershift	Powershift	44
45		Stage	FWD/RVS		2/2	2/2	2/2	45
46	Operating pressure (For attachments)			Mpa	17	17	17	46
