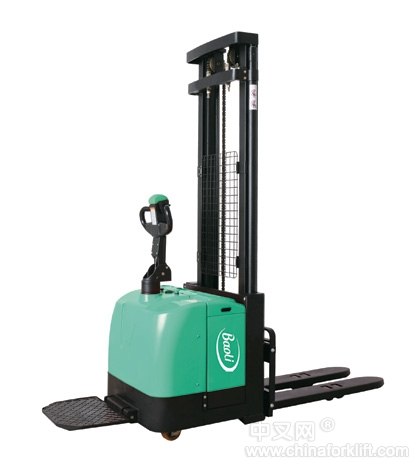

電動托盤堆垛車 |
制造商 Manufacturer | 凱傲寶驪 KION Baoli | ||||
| 型號 Model | ES12-100 | ES14-110 | ES16-140 | ES16-150 | ||
| 核定載重量 Load capacity | kg | 1200 | 1400 | 1600 | 1600 | |
| 載荷中心距 Load center | mm | 600 | ||||
| 駕駛方式 Operator type | 步行式/站架式(Walkie/Standing) | |||||
|
起升高度Standard Lift height |
mm | 3000 | 3300 | 3000 | 4500 | |
| 貨叉落地高度 Lowered fork height | mm | 85 | 85 | 85 | 55 | |
| 貨叉尺寸 Fork size | mm | 1150/185/55 | 1150/185/55 | 1150/185/55 | 1150/185/55 | |
| 總長(踏板折疊/打開) Overall length(with platform) | mm | 1993/2413 | 2050/2470 | 2050/2470 | 2105/2525 | |
| 總寬 Overall width | mm | 812 | 850 | 850 | 957 | |
| 最小轉彎半徑 Min turning radius | mm | 1525/1935 | 1580/1990 | 1580/1990 | 1630/2040 | |
| 行駛速度 Travel speed | km/h | 5/5 | ||||
| 自重(不含蓄電池)Truck weight(without battery) | kg | 920 | 969 | 1005 | 1343 | |
| 軸距 Wheel base | mm | 1270 | 1325 | 1325 | 1375 | |
| 蓄電池組 電壓/容量 Battery voltage,nominal capacity | V/Ah | 24/210 | 24/280 | 24/280 | 24/280 | |
| 驅動電機 Driver motor | KW | AC1.5 | ||||
| 起升電機 Lift motor | KW | DC3 | ||||
